Field Testing Specialist Services for Building Performance
Field Testing is pre-functional testing of various building components far in advance of the installed product to ensure that installed systems interface as intended, and workmanship meets the international standards of performance. It is usually undertaken when certain building materials or procedures are best tested at the construction site.
Building performance testing on envelope system and products and mock-ups at sites can provide critical data before your construction project begins. It allows pre-diagnosis of potential problems, such as air infiltration, structural deflection, water infiltration, thermal transmittance, sound transmittance, and fire resistance. Once known, proactive measures can be undertaken to remedy flaws that will avoid potential risks, project delays and any extra expenditure on building material and labor costs.

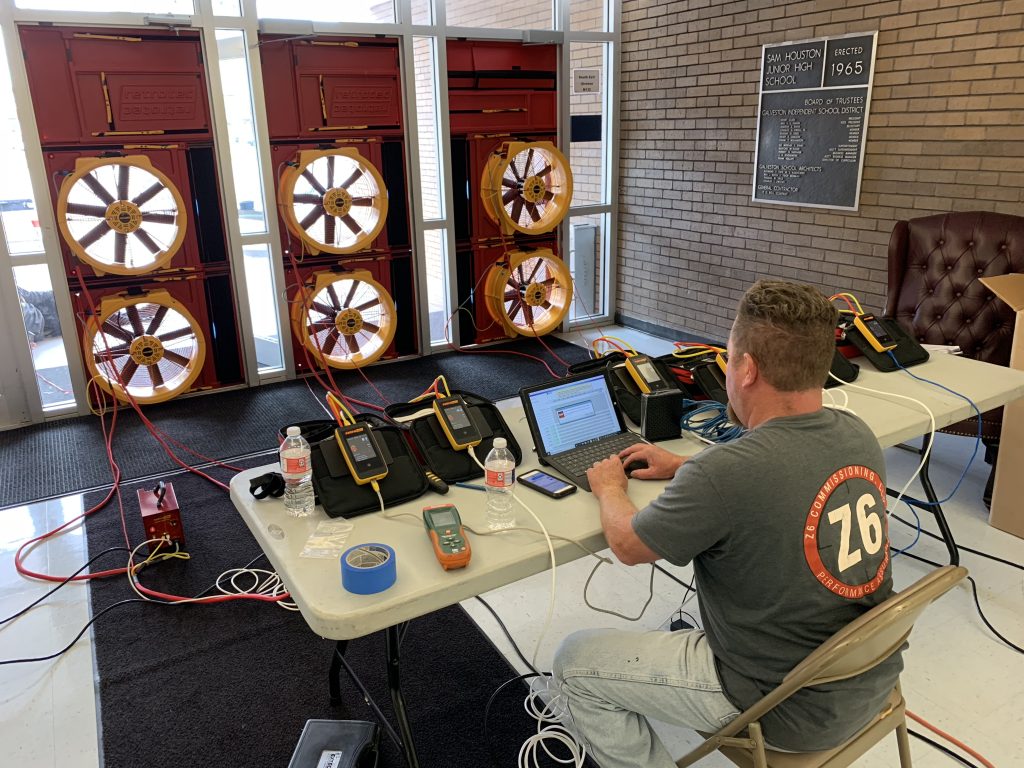

Blower Door
A diagnostic tool used to measure the airtightness of buildings and to help locate air leakage sites.

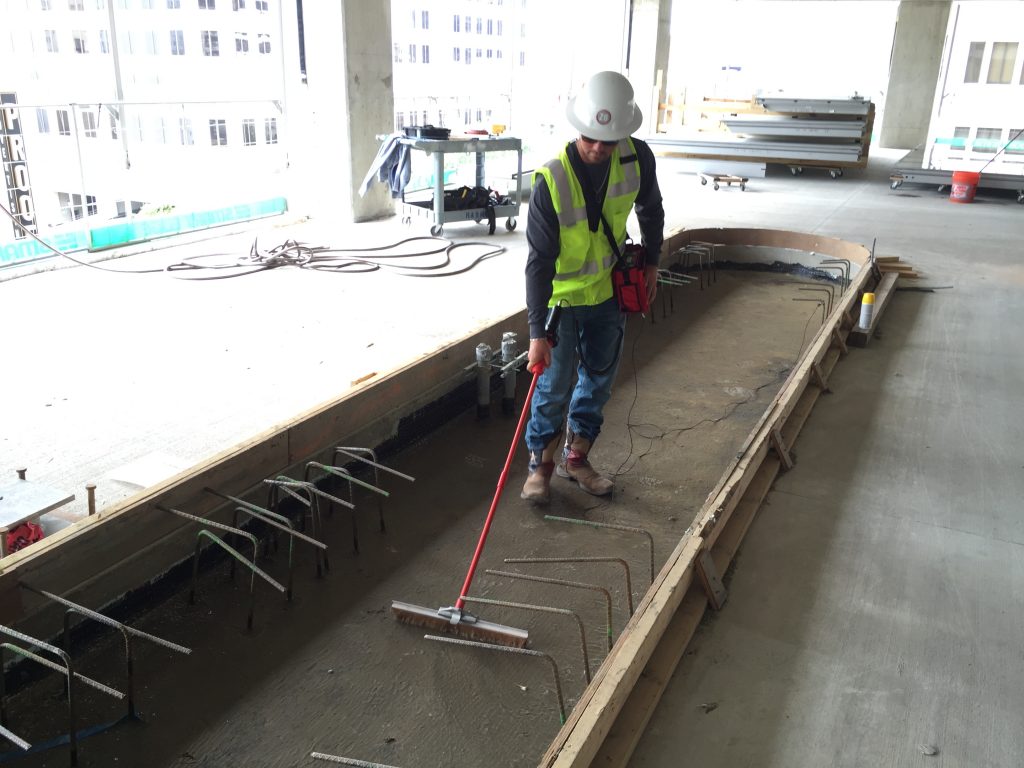

Electronic Leak Detection
A method used to locate leaks in waterproofing membranes applied to roofs, terraces, and other waterproofed surfaces.
Roof Membrane
A watertight roofing material used to cover and protect the roof structure from water infiltration.

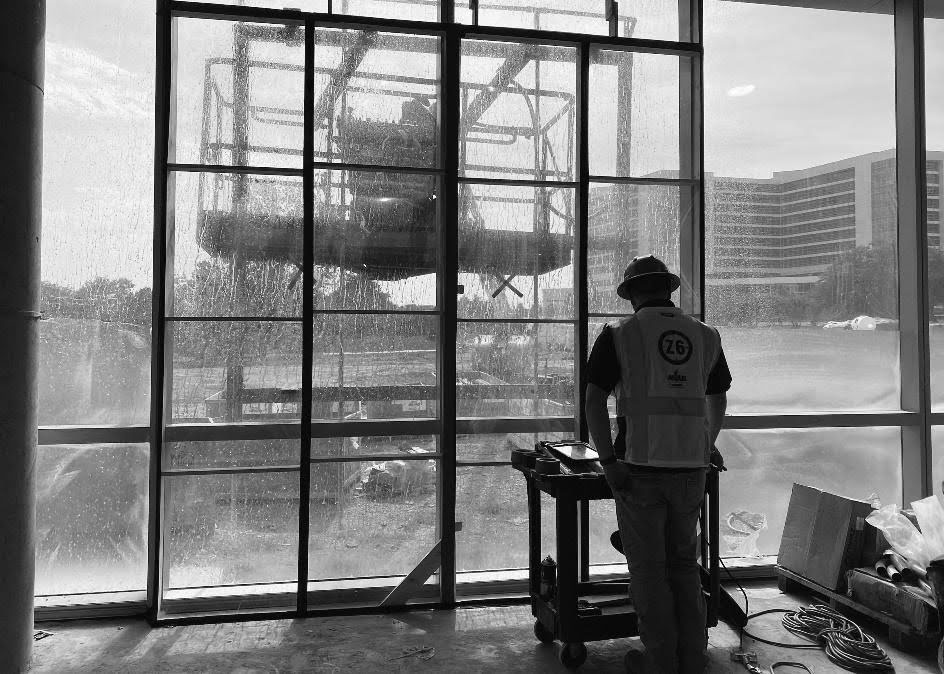

ASTM E1105
A standard test method for field determination of water penetration of installed exterior windows, skylights, doors, and curtain walls, by uniform or cyclic static air pressure difference.
Field Testing Specialist Services
We draw on our extensive building envelope commissioning expertise and utilize available accredited resources for problem resolution, or simply to ensure the quality of your products and systems meet the set standards of performance. Before we start our testing on site, we first understand your goals and then apply industry standard field testing protocols and procedures customized to suit your quality control program requirements. We follow widely recognized standards like ASTM, AAMA, etc., where applicable.
Z6 Consulting is ISO/IEC 17025 accredited for performance testing at our mock-up facility or on project sites for the below tests:
1. Exterior Windows, Doors, Skylights, Curtain Walls
i. Water Leakage / Infiltration – ASTM E1105, ASTM E331, ASTM E547, AAMA 501
ii. Air Infiltration – ASTM E283, ASTM E783
iii. Water & Air Infiltration – AAMA 502, AAMA 503
iv. Deflection / Deglazing – ASTM E330, ASTM E987
2. Roof Systems

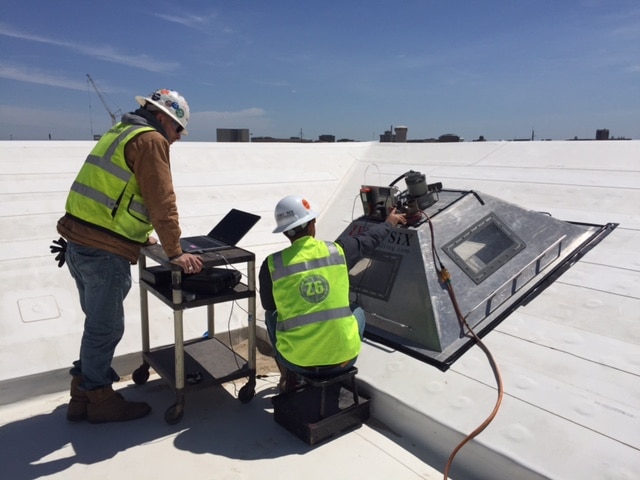

Roof Uplift Force – ASTM E907, FM Global 1-52
3. Coating Films, Adhesion Bond
Adhesion Strength – ASTM D3359, ASTM F842
4. Windows, Sliding Door Assemblies
Forced Entry – ASTM F588, ASTM F842
5. Concrete or Clay Tiles
Wind / Uplift Resistance – ASTM C1568, ASTM D4541, ASTM E2359 / E2359M
6. Miscellaneous
i. Roofing – ASTM D7877
ii. Window Sealant – ASTM C1521
iii. Envelope Air Leakage – ASTM E1186
iv. Foundation Humidity – ASTM F2170
v. Cladding Moisture Absorption – Rilem Commission 25 / PEM Test Method 1154
vi. Field impact sound transmission loss tests and site noise level assessments to meet local, state, or federal noise limits
vii. Cleaning tests on various cleaning materials and application methods to ensure the best cleaning results without damaging the building materials
viii. Thermal imaging of completed systems
Field Testing Services
On-Site Analysis
Portfolio
Testimonials
Zero/Six's outstanding professionalism, along with their high level of expertise, has consistently equipped our team with the essential resources needed to ensure the successful completion of our projects.
Zero/Six has been successfully providing consulting services for projects with the OFPC South Texas Region for over 8 years, I would not hesitate to recommend and consider them for any future endeavors.
Zero/Six's dedicated staff and ongoing contributions significantly enrich our team, ensuring the delivery of top-quality buildings. We wholeheartedly welcome Zero/Six's involvement in any project.
